High Availability
TaskQoS High-Availability Platform 6500Q & 8500Q supports the bandwidth from 100Mbps to 310Mbps (fiber-optic connectivity), suitable for the performance-conscious high-end users operating broadband network for their business.
For the high-end users, such as university, ISP, Carrier, S.O or governmental institution, necessary to offer quality network service for their competitive edges, it is of the highest pressure to offer more speedy & reliable network service to increasing overload by tremendous subscribers & access causing performance degradation & unstable service.
TaskQoS High-Availability Platform is designed to provide an excellent performance for the management of broadband network. With its incomparable powerful performance, high-powered network infrastructure can utilize 100% of its capability and comprehensive management tools delivers network-wide monitoring & control.
|
| |
 |
|
| ++ Main Feature ++ |
|
QoS |
|
|
Control the full-duplex bound traffic
Bandwidth fixation and correction
Application (port), USER (IP), Setting of Network by the group and available of mixed apply
L7 filtering function
- File/Extension, File Size, URL, Web and function for blocking 80 ports
- Blocking a Worm Virus (Nimda, Code, Slammer, etc)
- Auto blocking a DoS attack(Denial of Service) and reporting(IP and Port blocking operation)
Providing a control function for port hopping traffic (p2p)
|
|
|
Monitoring |
|
|
Providing a status graph of traffic by the every single second
Support a real time packet capture (Application, USER, IP, ALL)
Full-duplex traffic monitoring
Monitoring the Application of Usage by the time and HOST
Checking function of usage by the Application, USER, IP and Time
|
|
|
Analysis |
|
|
Analyzing the traffic sending rate, usage application and time about Internal/External IP
Analyzing the IP usage, time and traffic sending rate about Internal/External port
Providing a status of whole analyzed packet (IP, Port) by the every single minute
Providing a analyzed log of traffic sending Top Tank about IP, Port
Providing a market share about top (n%) by the IP and Port
|
|
|
Reporting |
|
|
Supporting a specialized reporting tool based on MS-Word (TQLog)
Enable to automatically create and print a report (Black/Color)
Providing a analyzed report of variety traffic pattern
- Providing a detail status of traffic by the class
- Providing a utility program list for internal/external traffic
- Figuring out of illegal internal server
- Analyzing a status of network usage about traffic usage by the time of specific IP
- Providing a detail report of server program which used in specific IP
- Providing a usage status of connected PC and usage IP status of specific port?
|
|
|
Advanced Fail-Over |
|
|
Providing a function of spate H/W Bypass
Providing a 5 steps Fail Over
-Power OFF, Passive Mode, Active with Policy, Active without Policy
Providing a Bypass switch
|
|
|
Additional Function |
|
|
Available of Log Backup policy (by the time)
Providing a CLI type for user’s convenience
|
|
|
|
| ++ Specifications ++ |
|
Dimensions |
Interface Connections |
|
| Standard 19inch Rack mount |
| Height : 4.3Cm |
| Width : 43.1Cm |
| Depth : 48Cm |
| Weight : 8.7Kg |
|
| Console Port : RS-232 with RJ45 Connector |
| Network Interface : 10/100 Mbps Ethernet * 2EA |
| Remote Port : 10/100 Mbps Ethernet Port |
| Aux Interface : USB Port * 2EA |
|
|
Power |
Device Management |
|
| 110/240V, 50/60Hz, 6/3A, 250W |
|
| RJ-45 Console Port |
| Web-browser interface; ssh command-line interface |
|
|
Browser Support |
Agency Approval & Certifications |
|
| MS Internet Explorer 5.5 이상 |
|
| EMC; EN/IEC 60950 |
| FCC Part 15 Class B; UL 1950 |
| TTA Verified(TTA-V-N-03-027) |
|
|
key Features |
|
|
Separate type of H/W Bypass module
Outboard HDD

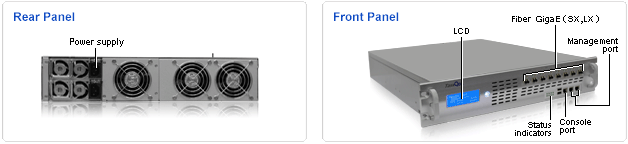

LCD Panel (Confirmation of Operating Status & Usage of traffic)
Enable to upgrade bandwidth from the 128K to 100M at same device
Optimizing the operating safety of QoS application’s DOM(Disk on Memory) |
|
|
| ++ TaskQoS Q-Series High - Availability Platform ++ |
|
Model |
Type |
Description |
Classes |
Filters |
Sessions |
|
TQ-8500Q-B155M |
2U |
Fiber GigaE SX/LX, up to 155Mbps |
2,048 |
8,192 |
1,000,000 |
|
TQ-8500Q-B200M |
2U |
Fiber GigaE SX/LX, up to 200Mbps |
2,048 |
8,192 |
1,000,000 |
|
TQ-8500Q-B310M |
2U |
Fiber GigaE SX/LX, up to 310Mbps |
2,048 |
8,192 |
1,000,000 |
|
TQ-8502Q-B155M |
2U |
2×Fiber GigaE SX/LX, up to 155Mbps |
2,048 |
8,192 |
1,000,000 |
|
TQ-8502Q-B200M |
2U |
2×Fiber GigaE SX/LX, up to 200Mbps |
2,048 |
8,192 |
1,000,000 |
|
TQ-8502Q-B310M |
2U |
2×Fiber GigaE SX/LX, up to 310Mbps |
2,048 |
8,192 |
1,000,000 |
|
TQ-10000Q-B310M |
2U |
Fiber GigaE SX/LX, up to 310Mbps |
4,096 |
8,192 |
2,000,000 |
|
TQ-10000Q-B622M |
2U |
Fiber GigaE SX/LX, up to 622Mbps |
4,096 |
8,192 |
2,000,000 |
|
TQ-10000Q-B1G |
2U |
Fiber GigaE SX/LX, up to 1Gbps |
4,096 |
8,192 |
2,000,000 |
|
TQ-10000Q-B2G |
2U |
Fiber GigaE SX/LX, up to 2Gbps |
4,096 |
8,192 |
2,000,000 |
|
TQ-10002Q-B310M |
2U |
2×Fiber GigaE SX/LX, up to 310Mbps |
4,096 |
8,192 |
2,000,000 |
|
TQ-10002Q-B622M |
2U |
2×Fiber GigaE SX/LX, up to 622Mbps |
4,096 |
8,192 |
2,000,000 |
|
TQ-10002Q-B1G |
2U |
2×Fiber GigaE SX/LX, up to 1Gbps |
4,096 |
8,192 |
2,000,000 |
|
TQ-10002Q-B2G |
2U |
2×Fiber GigaE SX/LX, up to 2Gbps |
4,096 |
8,192 |
2,000,000 |
|
|
|
